一体化 CUI 控制系统：柔性 ER 实时腐蚀监测与 VCI 干燥空气加注系统
Abstract / 摘要
Corrosion Under Insulation (CUI) is a catastrophic, hidden threat in high-temperature petrochemical piping and localized manifolds. Traditional methods are entirely passive and fail to detect electrolyte leaks early. This paper presents a next-generation Closed-Loop Active CUI Control System. The solution integrates flexible thin-film ER sensors (0.02mm to 0.3mm), VCI self-fusing silicone carrier bands, perforated PPS micro-drainage plugs, and a VCI POWER multi-stage pneumatic injection manifold. Backed by an IoT cloud diagnostics pipeline, this setup moves facility protection from blind reactive maintenance to automated, chemical-physical asset preservation.
保温层下腐蚀（CUI） 是石化高温管道及局部管网中极具破坏性的隐蔽威胁。传统防腐手段完全是被动的，且无法在早期发现电解质泄漏。本文推出了一种创新的 闭环主动式 CUI 控制系统。该方案有机集成了 0.02mm 至 0.3mm 柔性薄膜 ER 传感器、VCI 气相防锈自融硅胶带、打孔 PPS 微排水塞，以及 VCI POWER 多级气动加注分配歧管。在物联网（IoT）云端诊断链路的支持下，该系统将工厂防护从盲目的“事后抢修”提升为全自动、理化协同的资产全生命周期主动保护。
1. Physical-Chemical Synergistic Architecture / 理化协同系统架构
[VCI POWER Compressed Dry Air Unit]
│
(Pressure: 0.01 - 0.05 MPa)
│
┌─────────────────────────────┴─────────────────────────────┐
▼ ▼
[Air Inject Port] ──> [PPS Perforated Column] [VCI Vapor Saturation]
│ │ │
▼ ▼ ▼
Forced Convection ──> Liquid Water Discharge ──> Molecular Passivation Barrier
(Drying Bed Mat) (Lowest Geo-Points) (0.02-0.3mm Flexible ER Monitoring)
1.1 VCI POWER Dry Air Injection System / VCI POWER 气相干燥空气加注系统

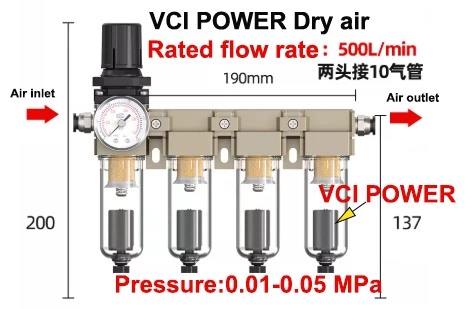

The mechanical cornerstone of the active system is the VCI POWER multi-stage pneumatic filtration and dosing distribution assembly. It actively alters the internal environment of the insulation matrix:
- Pneumatic Parameters (气动参数): The unit operates at an ultra-low, non-destructive positive pressure of 0.01 to 0.05 MPa, regulating a continuous rated throughput flow of up to 500 L/min.
- Dual-Zone Manifold Distribution (双头接10气管): Equipped with a dual-head main interface supplying ten parallel 10mm distribution air tubes, the controller simultaneously purges dense networks of insulation jackets without pressure drops.
- Active Moisture Purge & Chemical Dosing: Compressed air is stripped of liquid vapor via modular filter bowls and enriched with volatile corrosion inhibitor (VCI POWER) agents. This dry, chemical-loaded air is continuously driven through the jacket’s air inject ports, converting wet padding into an actively dried, vapor-passivated bed.
1.2 Multi-Functional PPS Drainage & Aeration Matrix / 多功能 PPS 排水与曝气布阵
Complementing the pneumatic injection block are the perforated PPS (Polyphenylsulfone) drain plugs and protective sealing caps:

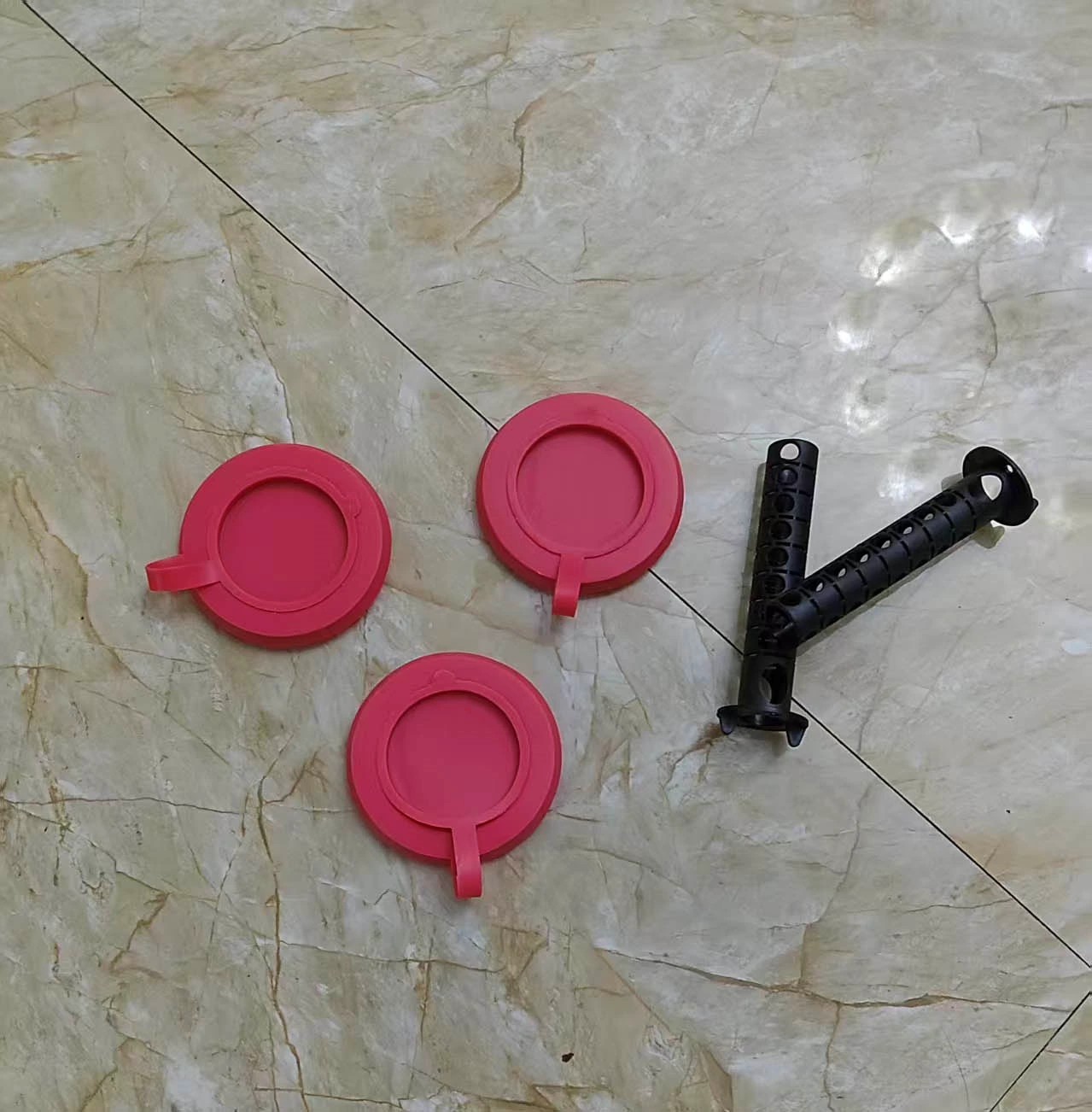

- Gravity Micro-Drainage: Positioned at the lowest gravity drain limits of the cladding jacket, these rugged polymer sleeves guide pooled water directly out of the asset loop.
- Convective Venting Profile (Air Holes): Built-in micro air holes interact with the VCI POWER forced air purge, venting displaced humid vapors out of the insulation shell while keeping structural insulation properties intact.
1.3 Flexible Thin-Film ER Sensor & VCI Carrier Tape / 柔性薄膜 ER 传感器与 VCI 载体带
- Curved Surface Conformability: The monitoring core uses an ultra-thin flexible electrode matrix (0.02 mm to 0.3 mm) adhered directly to VCI silicone autolysis tape.
- Molecular Film Preservation: The self-fusing carrier band seals complex joints, elbows, and flanges. Under process heat, it works alongside the VCI POWER injection stream to deposit a continuous, microscopic chemical barrier across bare metal, fully isolating steel from moisture ingress.
2. IoT Telemetry and Cloud Diagnostics / 物联网远程通信与云端诊断
The real-time degradation profile of the flexible ER sensor grid is continuously transmitted from the edge microcontroller via MQTT to the centralized live platform (://iawlin.com):
2.1 Low-Level Firmware Validation / 底层固件高精度校验
- Electrical Reference Lock: To prevent noise corruptions in harsh high-voltage fields, the loop utilizes an isolated Reference Voltage at 0.121 V and a Reference Electrode potential at 0.868 V to guarantee stable ADC resistance calculation (
PCB_Rvs.R0). - Low-Power Edge Loop (
LowPowerServiceLoop): The edge node sleeps until scheduled sampling triggers, parsing thickness variations down to the micron level before wrapping data into standard JSON payloads.
2.2 Cloud Predictive Dashboard Analytics / 云端预测性看板分析
- Dual-Velocity Tracking (双模速率追踪): The software instantly graphs the 24-hour average corrosion rate (e.g., 48.57 mm/y) alongside explosive peak corrosion spikes (up to 99.07 mm/y). These peaks alert operators to intense water flushes or chemical tracing leaks at specific timestamps (such as
2026-10-14 14:14:27). - Remaining Lifespan Gauge (有效寿命进度条): The cloud dashboard outputs a clear graphical tracker of the Sensor Remaining Useful Life percentage (e.g., 26% remaining). This indicator eliminates guesswork, allowing teams to schedule preventive probe swap-outs during routine factory turnarounds before structural steel damage occurs.
3. Engineering Paradigm Shift / 行业工程应用变革对比
| Metric / 技术维度 | Traditional Passive CUI Prevention / 传统被动防腐 | LCH Integrated Active Control System / LCH一体化主动系统 |
|---|---|---|
| Inspection Effort 巡检工作量 |
High Cost: Requires scaffolding, stripping metal cladding, and pulling out wet insulation manually. 高成本： 需要搭脚手架、大面积剥离铝皮、手动掏出湿保温棉。 |
Non-Destructive UI: Continuous naked-eye visibility of thickness variations via remote cloud screens. 非破坏性巡检： 远程云端屏幕直接查看内部，实现数字化非破坏性看板。 |
| Moisture Response 湿气积水处理 |
Passive Accumulation: Trapped condensate pools continuously, driving deep localized pitting. 任其积聚： 冷凝水长期无法排出并在底部积聚，引发严重的高温点蚀。 |
Active Gas-Purge Drying: 500L/min dry air injection at 0.01-0.05 MPa evacuates water instantly via PPS columns. 主动排气干燥： 0.01-0.05 MPa 压力下的 500L/min 干燥空气加注，将积水从 PPS 排出。 |
| Defense Life-Cycle 防护生命周期 |
Lagging Indicators: Catastrophes are only noticed after pipes leak, thin out, or lose pressure. 严重滞后： 往往在工艺管线穿孔、减薄泄漏或系统失压后才被动发现。 |
Predictive RUL Warning: Tracks probe consumption trends down to 26% to guide pre-planned repair turnarounds. 预测性预警： 实时追踪传感器寿命至 26%，指导有计划的检修大修。 |
4. Summary / 总结
The incorporation of the VCI POWER dry air dosing system converts the insulation jacket into a dynamically controlled, automated drying chamber. By combining multi-stage pneumatic moisture evacuation, active gas-phase chemical molecular defense, and micron-accurate flexible ER IoT telemetry, this integrated platform eliminates the catastrophic blind spots of CUI, guaranteeing maximum production uptime and extending the structural lifespan of critical infrastructure worldwide.
将 VCI POWER 干燥空气加注分配系统 引入工业现场，成功将传统的保温层转化为可动态调控、全自动的“气相烘干仓”。通过多级气动驱水排气、主动气相化学分子钝化防御以及微米级高精度柔性 ER 物联网遥测，该一体化系统彻底清除了 CUI 保温层下腐蚀的安全盲区，为全球高价值工业基础设施提供了极高的数据透明度与长周期资产安全保障。
